An Evaluation of Supported Scaffold Safety

Fatal Falls from Supported Scaffolds, 1992-98

• Total # of deaths = 267 (38/year)


  • 217 falls (81%)

  • 47 collapses (18%)


• 15 deaths (6%) dismantling scaffolds

• 6 deaths (2%) assembling scaffolds


Source: U.S. Bureau of Labor Statistics data

Research Methods

• Used a 150-point checklist to evaluate scaffold safety practice


  • Rated scaffolds as acceptable or unacceptable


• Evaluated 113 scaffolds in 9 areas of Eastern U.S.

• Also evaluated information on worksite, workforce, and scaffold competent person.

Results

• 36 of the 113 scaffolds (32%) were unacceptable and posed imminent hazards:


  • danger of collapse

  • missing planking, guardrails, and/or

  • inadequate access


• 77 scaffolds (68%) were acceptable and posed no imminent danger to the workers.

30 Scaffolds (27%) Had Structural Flaws

Missing or improperly supported base plates	17
Scaffold not tied properly to building	13
Platform not level	6
Some runners missing	3
Some jacks overextended	2
Severe overloading	2
Some posts incorrect	1
Some braces not tight	1

36 Scaffolds (32%) Had Fall Hazards

		# fall hazards
Missing mid guardrails		33
Missing top guardrails		28*
	* Also missing midrails
Improper access
	Climbing scaffold frame	23
	Other severe access problems	5
Partially planked platforms		26
Substandard planks		3

Correlation between Structural Flaws and Fall Hazards

• 36 scaffolds were unacceptable

• 23 had both structural flaws and fall hazards

• 10 had fall hazards only

• 3 had structural flaws only

Problems of Unacceptable Scaffolds

• 36 scaffolds were unacceptable


  • 92% were missing guardrails

  • 83% had structural flaws

  • 78% had poor access

  • 72% were insufficiently planked

Scaffold Competent Person

• Required by OSHA


  • 29 CFR 1926.451(f)(3) requires inspections by competent person before each work shift and after occurrences which could affect scaffold structural integrity


• Competent person


  • Recognize hazards

  • Authorized to take corrective action


Competent Persons on Scaffold Sites

• 104 sites had workers present

• 82 (79%) had competent persons

• 10 sites (10%) said competent person was not present

• 72 competent persons were interviewed


  • Only 32 (44%) had scaffold safety training

Need for Competent Person Scaffold Safety Training

• 32 sites had competent persons who had scaffold safety training


  • 25 scaffolds (78%) were acceptable


• 62 sites had no competent person or had one without scaffold safety training


  • 24 scaffolds (39%) were acceptable

Importance of Scaffold Erector

• 72 scaffolds erected by scaffold user


  • 43 (60%) were acceptable


• 41 scaffolds erected by scaffold erection contractor


  • 34 (83%) were acceptable

Effect of Union Status of Scaffold Erector

• 49 scaffolds erected by union contractors


  • 38 (78%) were acceptable


• 64 scaffolds erected by non-union contractors


  • 39 (61%) were acceptable

Effect of Type of Supported Scaffold

• 86/113 scaffolds (76%) were frame scaffolds


  • 54 frame scaffolds (63%) were acceptable


• 27 scaffolds (24%) were other types of scaffolds


  • 23 other scaffolds (85%) were acceptable

Summary of Proper Scaffold Safety Practice -1

• Unacceptable scaffolds have both:


  • Structural flaws


    • Missing or improperly supported base plates

    • Improper tying off to building

    • Uneven platform slope


  • Fall protection hazards


    • Missing planking and/or guardrails

    • Inadequate access

Summary of Proper Scaffold Safety Practice - 2

• Strong correlations with:


  • Presence of competent person with scaffold safety training

  • Use of non-frame scaffolds

  • Scaffold erected by scaffold erection company


• Slightly weaker correlation with union status of scaffold erector

Summary of Proper Scaffold Safety Practice - 3

• No correlation with:


  • Location n Site size

  • Number of workers on the scaffold

  • Trade of scaffold workers

Recommendations

• Hire an outside scaffold erector

• Have competent person on site who has had scaffold safety training

• Consider whether frame scaffolds are the best choice

• Perform regular inspections

Quick Scaffold Inspection Checklist

• Check for missing planks on platforms

• Check for missing guardrails

• Check for proper access

• Check for proper tying off to buildings

• Note: The first 3 points find 92% of unacceptable scaffolds

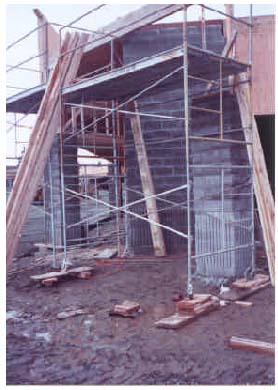

Missing Planks

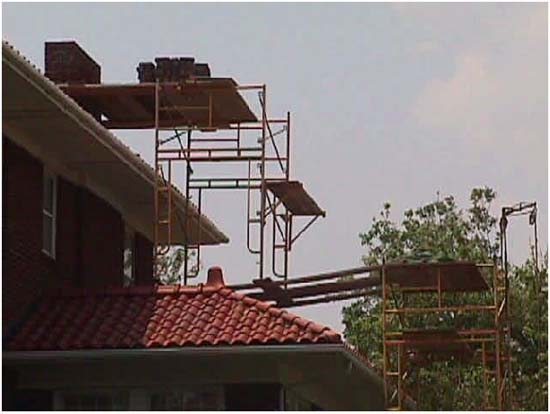

Missing Guardrails

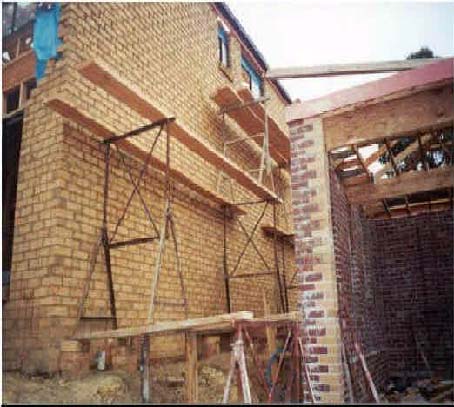

Improper Access



Further Information on Construction Safety and Health

CPWR – Center for Construction Research and Training www.cpwr.com

This presentation was funded by research grant U60 CCU 317202 from the National Institute for Occupational Safety and Health (NIOSH) through CPWR – Center for Construction Research and Training, Silver Spring, Md. The contents are solely the responsibility of the authors and do not necessarily represent the official views of NIOSH.
